Outward swinging door
The Outward Gliding Door’s design and proven technology ensures low maintenance costs and the excellent sealing ensures high stability.
The Outward Gliding Door has been tried and tested by Ventura Systems C.V. The proven technology is easy to install and has low maintenance cost. The outward movement of the door system ensures maximum interior space for passengers.
The system is available with both an electrical actuator or pneumatic cylinders and we can manufacture both single and double leaf models. Height, width and other features can be customized according to your wishes.
Available for:

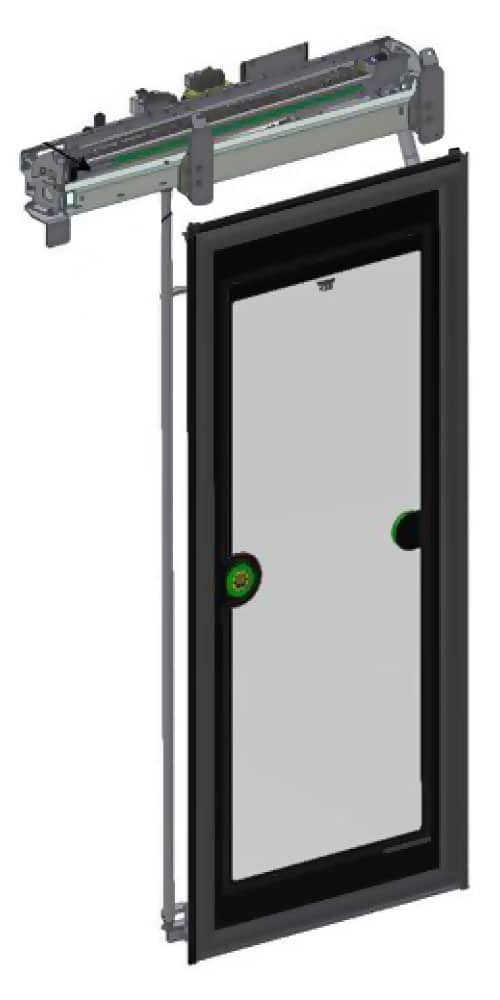

Rapid sliding doors are doors that slide very rapidly. They open and close very fast and still seal the doorway very well. Thanks to great engineering, these doors are prepared for high speeds and safe in any situation. The doors are securely sealed off, but are also easy to open, thank to the emergency switch on the inside.
Rapid sliding doors are doors that slide very rapidly. They open and close very fast and still seal the doorway very well. Thanks to great engineering, these doors are prepared for high speeds and safe in any situation.
Type 1
- Fast opening and closing
- Exceptional good sealing
- Free passenger space and access
- Perfect locking and “High Speed” proof
Type 2
- Fast opening and closing
- Exceptional good sealing
- Free passenger space and access
- Perfect locking and “High Speed” proof
Type 3
- Fast opening and closing
- Exceptional good sealing
- Free passenger space and access
- Perfect locking and “High Speed” proof
Specifications
| Name | Actuator location | Emergency releasing | Power requirement | Operating temperature options | Opening / closing time | Default safety features |
|---|---|---|---|---|---|---|
| Type 1 | Above the doorway | Mechanical, pneumatic | 12/24 VDC | -40°C ... +80°C | 2-5 sec. | Sensitive edge, current monitoring, position detection |
| Type 2 | Above the doorway | Mechanical, pneumatic | 12/24 VDC | -40°C ... +80°C | 2-5 sec. | Sensitive edge, current monitoring, position detection |
| Type 3 | Above the doorway | Mechanical, pneumatic | 12/24 VDC | -40°C ... +80°C | 2-5 sec. | Sensitive edge, current monitoring, position detection |
| Type 4 | Above the doorway | Mechanical, pneumatic | 12/24 VDC | -40°C ... +80°C | 2-5 sec. | Sensitive edge, current monitoring, position detection |
