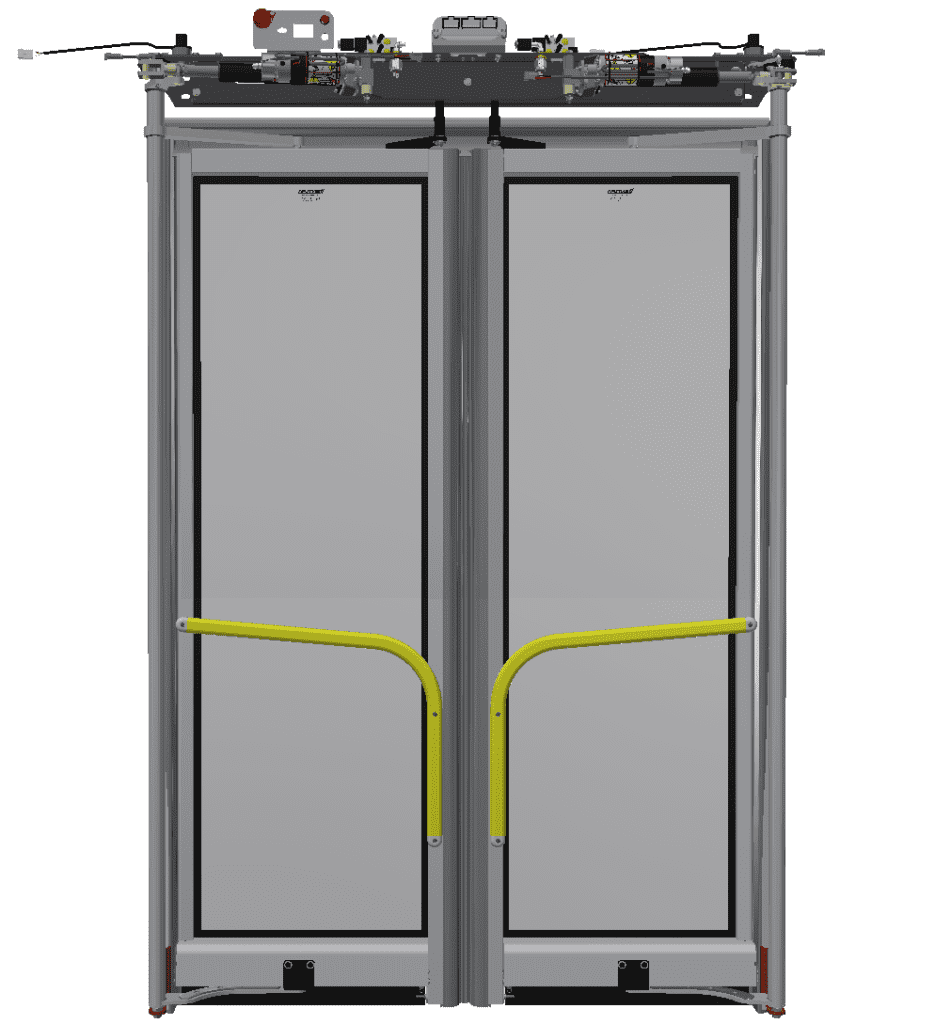

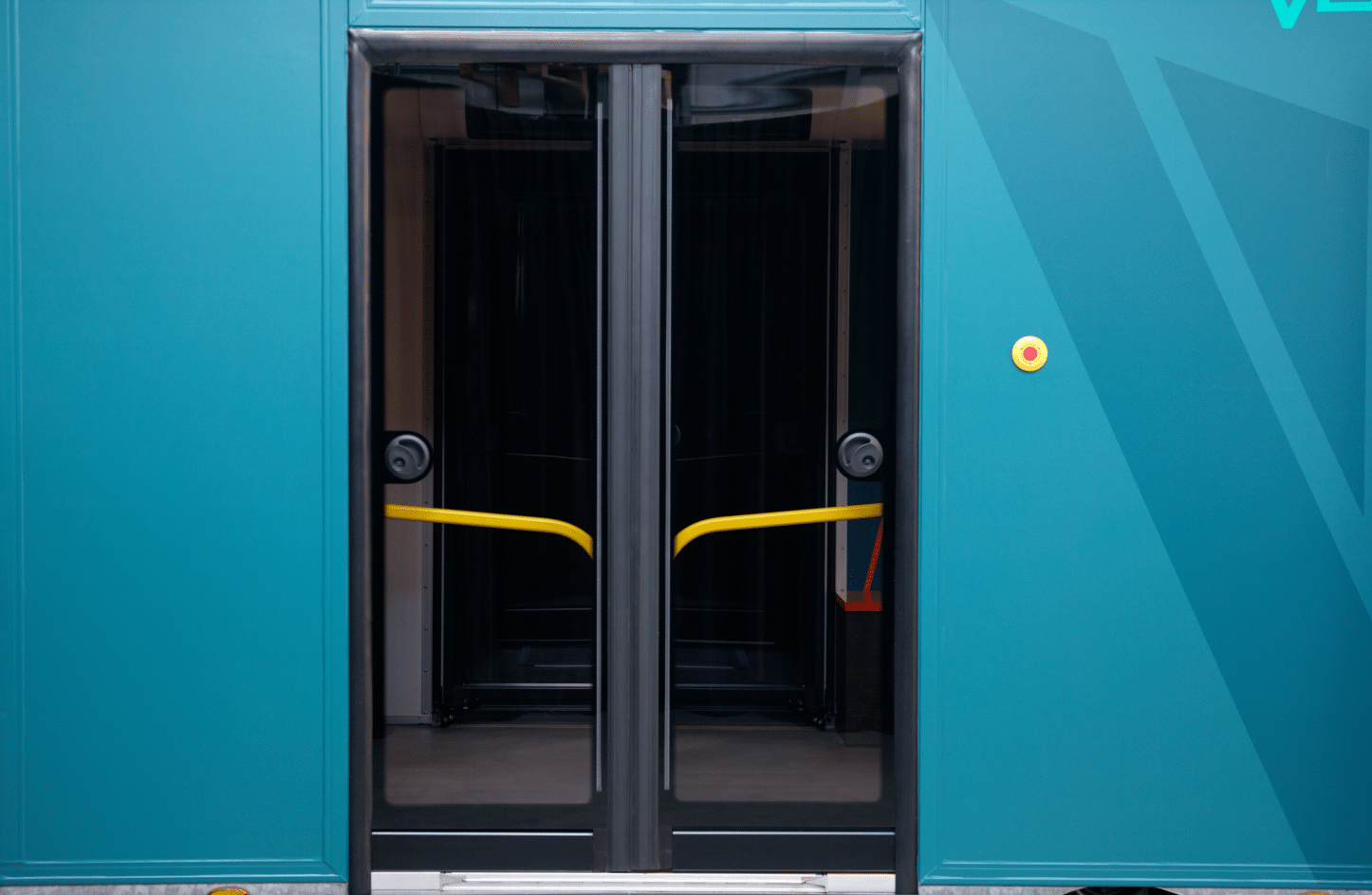

Inward gliding door
Custom engineered
Ventura's Inward Gliding Door has been used by leading manufacturers for years and is well suited to urban public transport vehicles.
The Inward Gliding Door is one of the first systems manufactured by Ventura Systems. Its proven technology has been used and improved for various years, resulting in a low maintenance solution.
The Inward Gliding Door is sealed with an integral rubber; no brushes are required. Thanks to the special sealing on the bottom of the door, no water or wind will enter. As a result, the door does not protrude, fits perfectly in the frame and prevents noise.
The system is available in both the electrical and pneumatic version and we can manufacture both single and double leaf models. Height, width and other features can be customized according to your wishes.
Low life cycle cost
Low maintenance
Proven technology
Available for:
- Low life cycle cost
- Low maintenance
- Proven Technology
| Feature | Specification |
|---|---|
| Door leaf | single / double |
| Drive / actuator | pneumatic / electric (24V/12V) |
| Portal width | 815 - 880 mm / 1100 - 1425 mm |
| Handrail shape | straight/L-shape/S-shape |
| Handrail colour | RAL colours |
| Glazing | single/double/heated/tinted |
| Safety | obstruction detection/drag detection/passenger sensors |
| Recommended max. vehicle speed | 70 km/h - 43 m/ph |
| Compliance | ECE R 107 / ECE R 118-3 / ECE R 10 / TS 160 / ISO 26262-QM (Ventura DCU) |
Specifications
| Option 1 | Option 2 | Option 3 | |
|---|---|---|---|
| Actuator | Electric | Pneumatic | |
| Profile Color | Any | ||
| Glass | Single | Double | Heated |
| Glass Color | Any | ||
| Locks | Square key 7 or 8 mm | Emka | Ymos |
| Lock Switch | Optional | ||
| Voltage | 24 V | ||
| Door Leaves | Single | Double | |
| Width | 860 - 880 | 1200 - 1250 | 1300 - 1350 |
| Controls | DCU | Wabco | Bus Multiplex |
