Plug sliding door

developed by ventura

Our flagship product, the Plug Sliding Door, increases interior space and allows passengers to get on and off the vehicle quickly.

Ventura Systems was the first to develop a Plug Sliding Door for buses. We are constantly improving the Plug Sliding Door so we can offer you the best possible door system.

Innovative technologies ensure the door opens and closes fast to optimize passenger flow. The door moves close to the side of the vehicle so both the passengers inside and people waiting outside have enough space to easily enter or exit the vehicle. The Plug Sliding Door is built into the vehicle in such a manner that it takes little to no (passenger) space.

The system is available in both the electrical and pneumatic version with a double door leaf. Height, width and other features can be customized according to your wishes.

Low maintenance
Optimize passenger space
Quick and easy access

Available for:

Bus
Tram

  • Low maintenance
  • Optimize passenger space
  • Quick and easy access

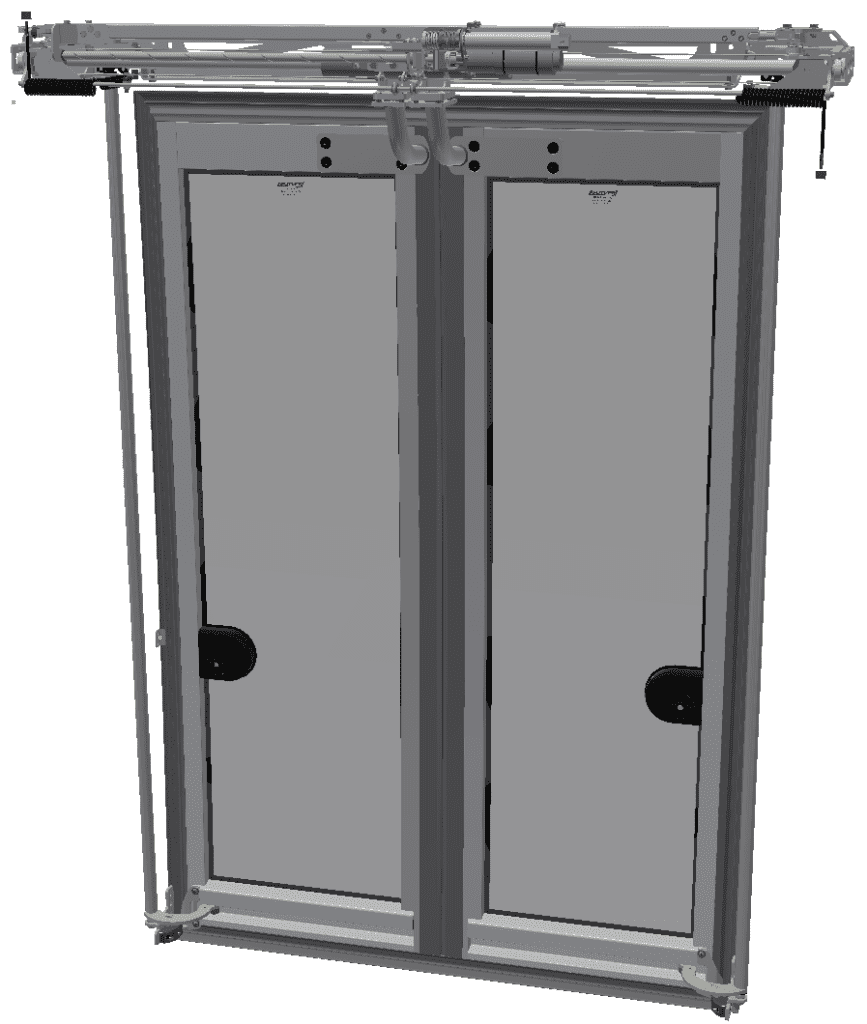

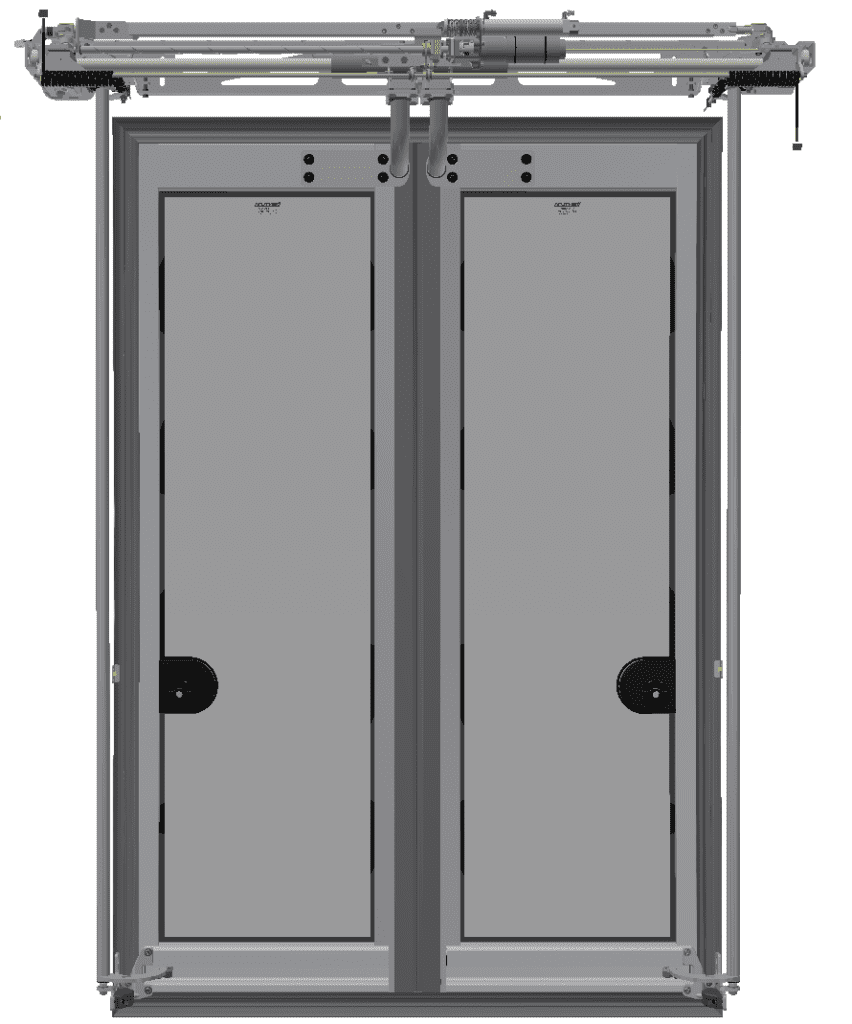

Plug Sliding Door

• Pneumatic or Electric
• Single and double leaf
• Width: 860 – 1350 mm
• Opening/closing time: 3/4 sec
• Speed test: 100 km/h
• Glass types: Standard, isolated and heated
• All control options
• Safety edge standard
• EG 2001/85 certified
• Available for trolley buses

Specifications

Option 1 Option 2 Option 3
Actuator Electric Pneumatic
Profile Color Any
Glass Single Double Heated
Glass Color Any
Locks Square key 7 or 8 mm Emka Ymos
Lock Switch Optional
Voltage 12 V 24 V
Door Leaves Two door leaves
Width 1200 - 1250 1300 - 1350 - 1400
Door buttons Captron EAO Escha
Controls DCU Wabco Bus Multiplex
